Design reference
Built to OEM drawing or application-specific load curve
Die Springs

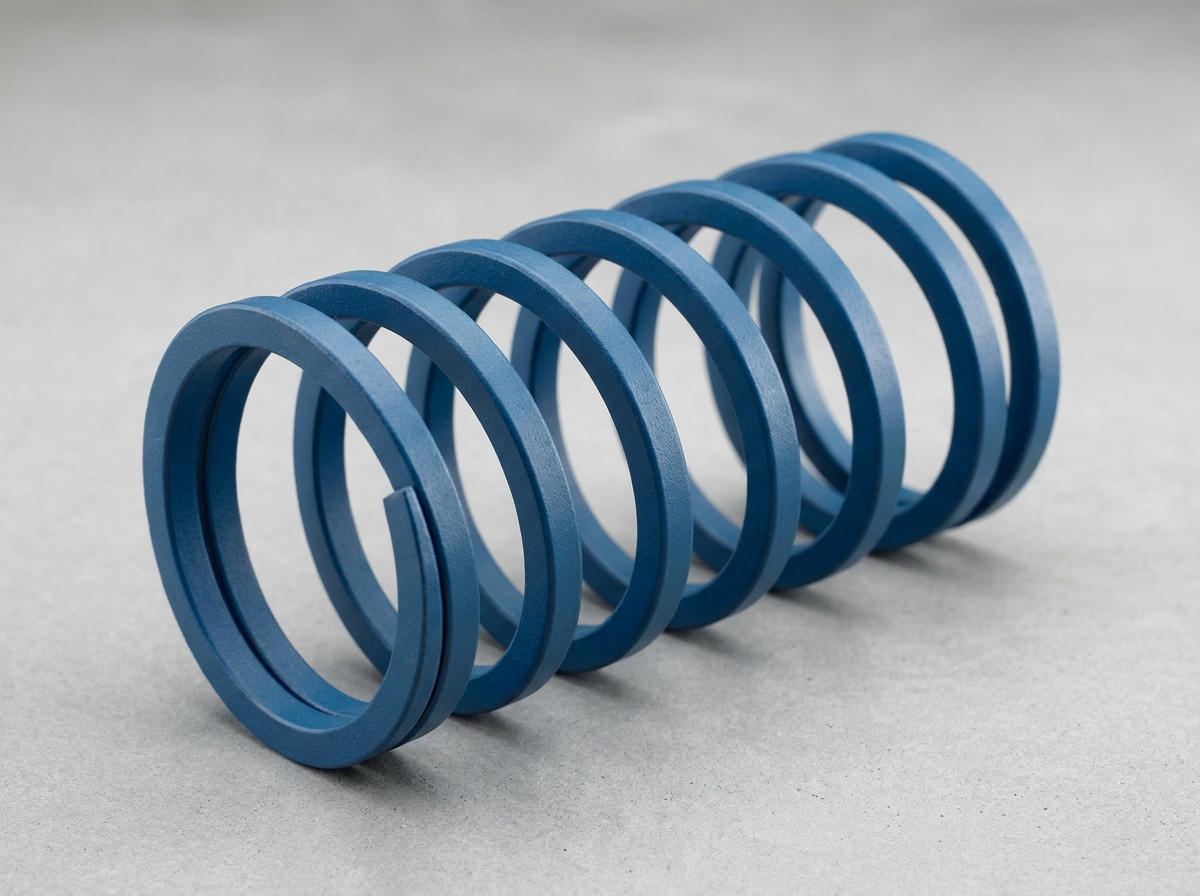

Custom Valve & Engine Springs
Application-specific high-cycle compression springs for valves and engine mechanisms where force at installed height, dynamic motion and fatigue margin are more important than a generic size range.
- Manufacturing basis
- Made to drawing
- Wire / thickness
- 2 - 8 mm typical
- Envelope
- 15 - 60 mm typical
- Length / height
- 25 - 80 mm typical
About Custom Valve & Engine Springs
Valve and engine springs work under repeated motion and often elevated temperature, so they are normally designed around a load curve and operating cycle rather than selected from a simple dimension table. Seat load, open load, installed height and maximum lift are key inputs, while frequency and moving mass influence dynamic behavior.
Key Design Characteristics
- Installed and open loads should be defined at exact spring heights.
- Coil clearance at maximum lift must leave margin for manufacturing tolerance and dynamic movement.
- Natural frequency, surge and moving mass become important as operating speed increases.
- Surface quality, heat treatment and residual stress can have a large effect on fatigue life.
What to Specify for a Custom Quote
- Wire diameter or available spring envelope
- Installed height and load
- Maximum compressed height or valve lift and corresponding load
- Operating speed, cycle profile and temperature
- Material, end condition, expected life and quantity
Manufacturing Review
These springs should be reviewed with functional load testing at the actual heights. For demanding high-cycle work, material condition, heat treatment, shot peening and dimensional consistency need to be part of the production plan.
Common Assembly Roles
- Engine valve return
- Industrial valve actuation
- Fast repeated compression mechanisms with defined load curves
Made to Order
How This Product Is Quoted
This category is reviewed from the drawing and working requirement rather than from a fixed public stock list.
Typical material direction
Chrome-silicon or chrome-vanadium spring steel
Why there is no fixed table
Valve and engine springs are engineered per application (RPM, seat load, cam profile) and are not sold from a generic size table.
Engineering Data
Typical Dimensions & Design Data
Use these data points to compare geometry, material and working parameters when defining your custom spring. Final values are reviewed and confirmed for the actual assembly before production.
| Configuration | Data type | Key parameters | Material / basis |
|---|---|---|---|
| Engineering reference | Engineering Data |
|
Per application / drawing |
| Engineering Data 02 | Manufacturing Range |
|
Common spring steels, stainless steels and alloys |
| Engineering Data 03 | Manufacturing Range |
|
Per drawing |
| Typical Configuration 04Data point | Typical Configuration |
|
Valve spring alloy / manufacturer specification |
| Typical Configuration 05Data point | Typical Configuration |
|
Valve spring alloy / manufacturer specification |
| Typical Configuration 06Data point | Typical Configuration |
|
Valve spring alloy / manufacturer specification |
Design note: dimensions, force / torque, material, tolerances, fatigue life and compliance are finalized against your drawing and operating conditions during quotation.
Next Design Decisions
Next Steps for Your Spring Design
Once the spring style is selected, confirm how it works in the assembly, which material suits the environment, how it will be manufactured and which dimensions and performance points should be controlled on the drawing.
Applications
Where this spring style fits
Review best-fit uses, assembly constraints and situations where another spring style may be a better choice.
View application guidance →Materials
Choose the material for the environment
Chrome-silicon and chrome-vanadium spring steels are common high-fatigue choices. Elevated temperature or corrosive service may require stainless or nickel-base alloys after a separate material review.
Compare spring materials →Manufacturing
Plan prototype and production
Review forming, heat treatment, secondary operations, inspection and the path from first samples to repeat production.
View manufacturing capabilities →Engineering Data
Use the engineering guide for design support
Use the engineering library to review materials, sizing considerations and applicable standards for the custom design.
Open Spring Engineering Guide →Material Direction
Common Material Families to Review
The links below are selection guides, not a claim that every grade is suitable for every size or load.
Compare Designs
Related Spring Products
Use these alternatives when the available space, connection style, travel or force direction changes.
Die Springs
ISO 10243 Duty-Class Die Springs
Heavy-duty die springs referenced to ISO 10243 duty classes for tooling, fixtures and repeated high-load compression where bore size, stroke and duty level must be matched together.
Compression Springs
Cylindrical Compression Springs
A straight, constant-diameter coil for predictable axial force where the spring works inside a bore, around a guide, or between two flat seats.
Compression Springs
Conical Compression Springs
A tapered compression spring for assemblies that need a changing diameter, improved stability, or a lower compressed package than a conventional straight coil can provide.
Product Questions
Valve & Engine Springs FAQ
Why is installed height so important for a valve spring?
The spring force depends on height. A small installed-height change can shift seat load and the force available through the whole motion.
Can a valve spring be selected only by wire size and OD?
No. Dynamic speed, required loads, lift, coil clearance and life are central to the design.
RFQ
Send the Working Requirement
A drawing is ideal. If you do not have one yet, provide the dimensions, load or torque, travel, environment and expected quantity that matter in the assembly.
