Design reference
Made to customer drawing; this class of part has no public cross-brand catalog
Wire Forms

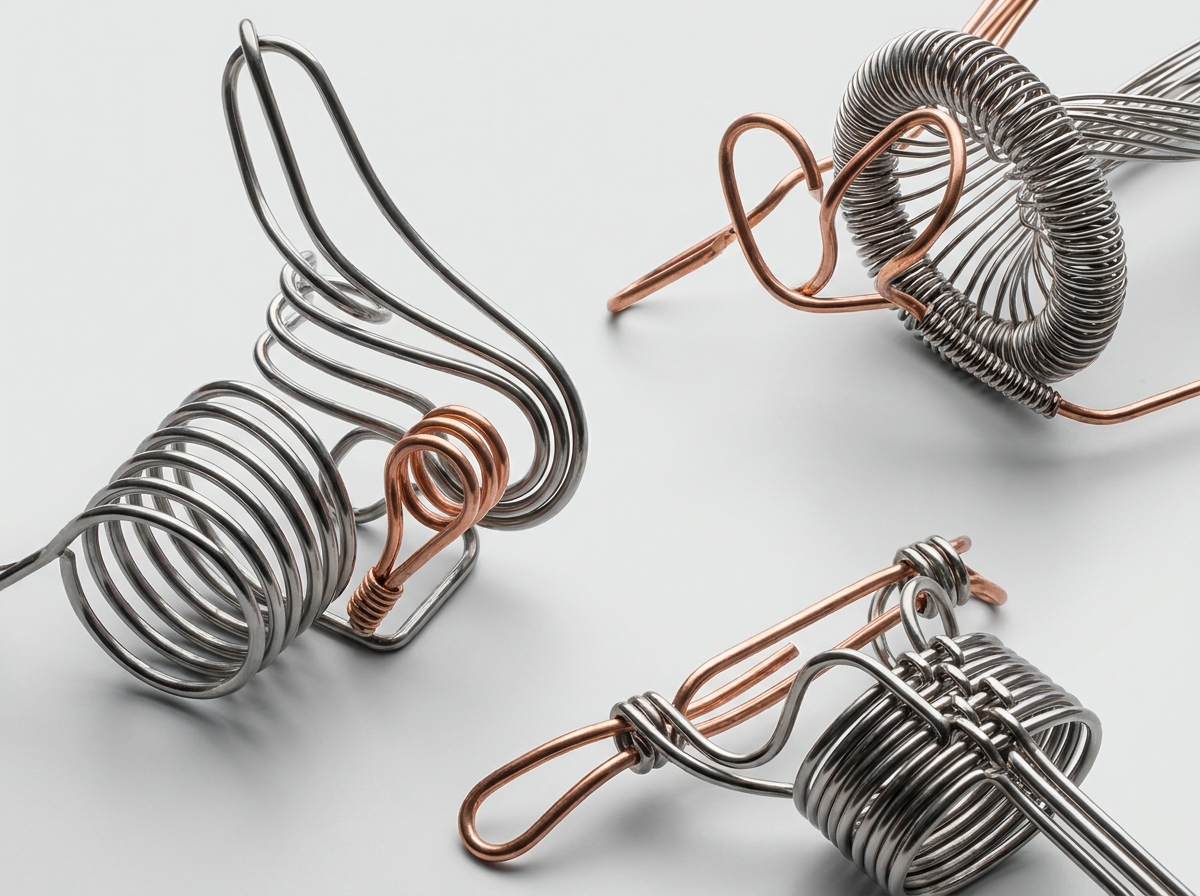

Custom Wire Clips, Hooks & Rings
Made-to-drawing wire clips, hooks and rings used to retain, hang, connect or locate parts where a standard spring geometry is not required.
- Manufacturing basis
- Made to drawing
- Wire / thickness
- 0.3 - 6 mm typical
- Envelope
- N/A (formed geometry per drawing)
- Length / height
- Per drawing
About Custom Wire Clips, Hooks & Rings
This group is defined more by connection function than by a specific shape. A clip may rely on elastic opening, a hook may mainly carry load, and a ring may retain a component around a shaft or opening. The critical dimensions are therefore the mating interfaces and the installed position.
Key Design Characteristics
- Contact features should be dimensioned from the mating pin, panel, slot or edge.
- Bend radius and wire temper determine whether the part can be formed without cracking or excessive springback.
- Open clips need enough elastic range for installation without permanent set.
- Ends may need deburring or controlled orientation to avoid scratching nearby components or interfering with assembly.
What to Specify for a Custom Quote
- Wire diameter, material and full formed outline
- Mating pin, slot, edge or hole dimensions
- Required opening, insertion or retention force if applicable
- Critical gap, hook opening and orientation
- Finish, edge condition, quantity and packaging requirements
Manufacturing Review
For parts with several bends, functional datums and a go/no-go checking concept are often more useful than a long list of independent angles. That helps keep the shape repeatable through production.
Common Assembly Roles
- Wire clips and retainers
- Hanging or connection hooks
- Custom rings and small formed attachment parts
Made to Order
How This Product Is Quoted
This category is reviewed from the drawing and working requirement rather than from a fixed public stock list.
Typical material direction
Carbon spring steel, 301/304/316 stainless, phosphor bronze
Why there is no fixed table
Clips, hooks, split rings and retainer wire forms are quoted from a 2D/3D drawing.
Next Design Decisions
Next Steps for Your Spring Design
Once the spring style is selected, confirm how it works in the assembly, which material suits the environment, how it will be manufactured and which dimensions and performance points should be controlled on the drawing.
Applications
Where this spring style fits
Review best-fit uses, assembly constraints and situations where another spring style may be a better choice.
View application guidance →Materials
Choose the material for the environment
Choose material around required elasticity, corrosion, conductivity and forming. Not every clip needs spring-tempered wire; some designs benefit from a more formable stainless or carbon grade.
Compare spring materials →Manufacturing
Plan prototype and production
Review forming, heat treatment, secondary operations, inspection and the path from first samples to repeat production.
View manufacturing capabilities →Engineering Data
Use the engineering guide for design support
Use the engineering library to review materials, sizing considerations and applicable standards for the custom design.
Open Spring Engineering Guide →Material Direction
Common Material Families to Review
The links below are selection guides, not a claim that every grade is suitable for every size or load.
Compare Designs
Related Spring Products
Use these alternatives when the available space, connection style, travel or force direction changes.
Wire Forms
Retaining Rings / Snap Rings
Custom wire retaining and snap-ring forms for grooves, shafts and bores where the ring must install reliably, recover elastically and hold a component in position.
Wire Forms
Wire-Formed Components
Custom 2D and 3D wire parts formed to a drawing when the component needs to locate, retain, connect, guide or support another part rather than behave like a conventional coil spring.
Wire Forms
Wire Brackets, Handles & Frames
Custom formed-wire brackets, handles and frames for lightweight support, carrying, guiding and structural functions made directly to the product geometry.
Product Questions
Wire Clips, Hooks & Rings FAQ
How do I specify clip retention force?
Show the installed position and the amount the clip must open or deflect, then state the desired force at that condition.
Can the ends be rounded or deburred?
Yes. End condition should be stated when the part is hand-assembled, contacts a cable or seal, or must avoid marking a finished surface.
RFQ
Send the Working Requirement
A drawing is ideal. If you do not have one yet, provide the dimensions, load or torque, travel, environment and expected quantity that matter in the assembly.
